Living without Solder

Time to dust off the blog, as a place to put things that don’t belong anywhere else during this quarantine. New York City’s closed all essential businesses, including my university, so like much of the world at the moment, I am working from home. This means a desk littered with electronic parts. It also means having to build circuits with no soldering iron, since I left it at the university.

For many parts, no solder is no problem, but what do you do with something like your typical breadboard breakout board like this air quality sensor from Sparkfun? I could switch my whole system to other components like Grove or Qwiic, but that limits my options in terms of selection, and most importantly, I want to keep working with the through-hole components I’ve already got.

Figure 1. CCS811 Air Quality Meeting from Sparkfun.
Figure 1. CCS811 Air Quality Meeting from Sparkfun. It has holes for 0.1-inch spaced pins, but no header pins.

The answer: friction-fit header pins. These header pins have a loop at the tip that can be pushed tight into a typical header pin hole, forming a tight mechanical contact. They’re not perfect, and I will go back to soldering when I can, but for now, they’ll do the job.

Figure 1. Press-fit header pins, 0.1" spacing.
Figure 2. Press-fit header pins, 0.1″ spacing.

Here are two press-fit options from Digikey, who seem to still be delivering at the moment:

My other non-solder solution when I need to make a board I can throw around a bit is to use 22 AWG solid-core wires instead of stranded jumper wires. These used to be the standard for me, but in the past nine or ten years, flexible jumpers have taken over the maker electronics world. But they come out too easily, and if you’ve got a lot of clutter on your desk, they make for boards that easily get ruined. By cutting solid wire exactly to length and laying it flat on the board, you can make a more solid board. I usually keep at least red, black, blue, and yellow options in stock.

Figure 3. A solderless breadboard with Arduino 33 IoT and CCS811 air quality sensor.
Figure 3. A solderless breadboard with Arduino 33 IoT and CCS811 air quality sensor. The wires connecting the components are 22AWG solid-core, custom cut to length. The CCS811 has press-fit headers. It’s not as robust as a soldered board, but it’ll stay together longer than one done with jumper wires.

Posted in misc | Comments Off on Living without Solder

MKR GSM 1400 Pre-flight Checklist

I’ve been getting to know the MKR GSM 1400 boards better the past few days, and in the process I’ve assembled a “pre-flight checklist” of things you’ll want to do first, in order to make sure everything is ready to go. It took a few errors and missteps to get here, so I’ll mention those along the way.

Make sure you have an antenna attached

I thought “I’ll be fine just to test, there’s good service in my city.” Wrong. Attach an antenna. You’ll need it to get a good signal even in a well-covered area. The GSM Antenna sold on the Arduino Store works well, though any GSM antenna with a SMA male connector should work.

Get a SIM card

I used, thanks to recommendations from the rest of the Arduino team and Don Coleman. Their Hologram Maker Edition service is affordable and easy to use. When you do set up an account, get a SIM card of course, and assign a phone number to it. That’s optional for their service, but needed if you want to send and receive SMS messages or phone calls.

You’ll also want to take note of the Device ID, APN info, and Device Key. You’ll need those later. When accessing GPRS services through the MKR 1400, the login is the Device ID and the password is the Device Key.

Download MKRGSM library

You can find this in the Arduino IDE’s LIbrary Manager. When you install it, you’ll get a new set of example sketches in the File Menu, Examples submenu called MKRGSM. You’ll need to have the right board chosen in the Tools menu (MKR 1400) in order for these examples to show up in the Examples submenu, though.

Run the TestModem Sketch

Click the File Menu, Examples submenu, MKRGSM submenu, Tools submenu to find the TestModem sketch. Upload this to your board and open the Serial Monitor. You should get the following output:

Starting modem test…

Then a slight delay, followed by:

modem.begin() succeeded
Resetting modem…Modem is functoning properly

Your IMEI will be unique to your board, it’s the International Mobile Equipment Identifier. It’s written on the MKR1400, and encoded in the QR code there as well.

If you don’t get these messages, check that your SIM card is inserted properly, and that you’ve chosen the right board and serial port. Then upload the sketch again.

Run the BandManagement sketch

Click the File Menu, Examples submenu, MKRGSM submenu, Tools submenu to find the BandManagement sketch. Upload this to your board and open the Serial Monitor. You should get the following output:

Restarting modem…

Then a slight delay followed by:

Modem restarted.
Current band:EGSM_DCS_MODE
Want to change the band you’re on?
Select band:
1 : E-GSM(900)
2 : DCS(1800)
3 : PCS(1900)
4 : E-GSM(900)+DCS(1800) ex: Europe
5 : GSM(850)+PCS(1900) Ex: USA, South Am.
6 : GSM(850)+E-GSM(900)+DCS(1800)+PCS(1900)

Choose the right band for your region of the world. If you pick the wrong region, the MKR1400 will never connect to a network. I puzzled over this for several minutes before I thought to check the band, as I was in the US and the board came from Europe. Type the correct number in the Serial Monitor’s input field, then hit enter. You should get:

Configuring band GSM850_PCS_MODE

Or whatever mode is appropriate to your region. Then after a few seconds:


Run the ScanNetworks sketch

Click the File Menu, Examples submenu, MKRGSM submenu, Tools submenu to find the GsmScanNetworks sketch. If your SIM card requires a PIN, enter it in the arduino_secrets.h tab. Upload this to your board and open the Serial Monitor. You should get the following output:

GSM networks scanner

Then a longer delay followed by:

Scanning available networks. May take some seconds.
Current carrier: T-Mobile
Signal Strength: 5 [0-31]
Scanning available networks. May take some seconds.
Current carrier: T-Mobile
Signal Strength: 5 [0-31]
Scanning available networks. May take some seconds.

This should be the first sketch that connects your MKR 1400 to the mobile network, so make sure you have an antenna attached. Your carrier name and signal strength will vary, of course. The scanning will run continually.

Once you see this, you know you’re on the mobile network. Now the fun begins.

Run the SendSMS sketch

Click the File Menu, Examples submenu, MKRGSM submenu, to find the SendSMS sketch. If your SIM card requires a PIN, enter it in the arduino_secrets.h tab. Upload this to your board and open the Serial Monitor. You should get the following output:

SMS Messages Sender

Then a delay followed by:

GSM initialized
Enter a mobile number:

Type your mobile phone number into the Serial Monitor’s input field, including the country code. For example, a typical US number would be +15551212. Then type enter. You should get the following output:

Now, enter SMS content:

Type a message, something like this:

I like aardvarks and okapi, don't you too?

You should get the following output:

I like aardvarks and okapi, don't you too?


Enter a mobile number:

You should get the text on your phone number too, of course. Note that the sending phone number may not be the one associated with your SIM. This will depend on your carrier. Send a few more until you’ve exhausted that fun.

Run the ReceiveSMS sketch

Click the File Menu, Examples submenu, MKRGSM submenu, to find the ReceiveSMS sketch. If your SIM card requires a PIN, enter it in the arduino_secrets.h tab. Upload this to your board and open the Serial Monitor. You should get the following output:

SMS Messages Receiver

Then a delay followed by:

GSM initialized
Waiting for messages

Send a text message from your mobile phone to the number associated with your SIM card. You should get the following output:

Message received from:
Oh, and llamas and bonobos are quite nice too.

Now you know you’re successfully sending and receiving messages from the mobile network. Finally, test GPRS connectivity:

Run the GsmSSLWebClient sketch

Click the File Menu, Examples submenu, MKRGSM submenu, to find the GsmSSLWebClient sketch. Click the arduino_secrets.h tab and enter your APN info, login, and password. From, you hologram for the APN, use the Device ID as login and generate a Device Key as password. Hologram SIMs do not require a PIN. Check with your mobile provider for details on your own SIM. Upload this to your board and open the Serial Monitor. You should get the following output:

Starting Arduino web client.

Then a longer delay followed by:

HTTP/1.1 200 OK
Server: nginx
Date: Tue, 19 Mar 2019 13:48:40 GMT
Content-Type: text/plain
Content-Length: 2263
Last-Modified: Wed, 02 Oct 2013 13:46:47 GMT
Connection: close
Vary: Accept-Encoding
ETag: "524c23c7-8d7"
Accept-Ranges: bytes
`:;;;,` .:;;:. .;;;;;;;;;;;` :;;;;;;;;;;: TM `;;;;;;;;;;;;;;;` :;;;;;;;;;;;;;;; :;;;;;;;;;;;;;;;;;; `;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;; .;;;;;;;;;;;;;;;;;;;;
;;;;;;;;:;;;;;;;;; ,;;;;;;;;..;;;;;;;; .;;;;;;, :;;;;;;; .;;;;;;; ;;;;;;; ;;;;;; ;;;;;;; ;;;;;;, ;;;;;;. ,;;;;; ;;;;;;.;;;;;; ;;;;;;
;;;;;. ;;;;;;;;;;;``` ;;;;;
;;;;; ;;;;;;;;;, ;;; .;;;;;
;;;;:;;;;;;;; ;;; ;;;;;
,;;;;,,,,,,,, ;;;;;;; .,,;;;,,, ;;;;;
:;;;;.;;;;;;;; ;;;;;, :;;;;;;;; ;;;;; :;;;; .;;;;;;;; ;;;;;; :;;;;;;;; ;;;;; .;;;;. ;;;;;;;. ;;; ;;;;; ;;;;; ;;;;;;;;; ;;; ;;;;; ;;;;; .;;;;;;;;;; ;;; ;;;;;, ;;;;;;;;;;;;;;;;;; ;;;;;
;;;;;, .;;;;;; ;;;;;;; ;;;;;; ;;;;;;: :;;;;;;. ;;;;;;; ;;;;;; ;;;;;;; .;;;;;;;, ;;;;;;;; ;;;;;;;:
;;;;;;;;;:,:;;;;;;;;;: ;;;;;;;;;;:,;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;. ;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;; :;;;;;;;;;;;;;;;;: ,;;;;;;;;;;;;;, ;;;;;;;;;;;;;; .;;;;;;;;; ,;;;;;;;;:
;;; ;;;;;` ;;;;: .;; ;; ,;;;;;, ;;. `;, ;;;; ;;; ;;:;;; ;;;;;; .;; ;; ,;;;;;: ;;; `;, ;;;:;;
,;:; ;; ;; ;; ;; .;; ;; ,;, ;;;,;, ;; ;; ;; ;: ;; ;; ;; ;; .;; ;; ,;, ;;;;;, ;; ;;.
;: ;; ;;;;;: ;; ;; .;; ;; ,;, ;;;;;, ;; ;;
,;;;;; ;;;; ;; ;; .;; ;; ,;, ;; ;;;, ;; ;; ;; ,;, ;; .;; ;;;;;: ;;;;;: ,;;;;;: ;; ;;, ;;;;;; ;; ;; ;; ;; ;;;;. `;;;: ,;;;;;, ;; ;;, ;;;;

That text will appear as the ASCII-encoded Arduino logo in your Serial Monitor. Now you know you’ve got GPRS working, and should have enough functionality to proceed with your own sketches.

The MKRGSM library is based on similar principles as the WiFi101 and WiFiNINA libraries. Once you connect to the network, you use a variety of classes to do your business. The SMS class functions a bit like the Serial class, in that it’s based on the Stream class, so you can do things like see how many bytes are available(), you can read() and write(), and so forth. The GSMClient and GSMSSLClient classes function just like the TCP client classes in the WiFi libraries. Check the MKRGSM library documentation for more detail.

Posted in arduino/wiring, electronics | Comments Off on MKR GSM 1400 Pre-flight Checklist

HTML Interface For a Digital Multimeter

It’s been a long time since my last post on this site. Time to update it a bit.


Recently, some colleagues of mine and I were looking for a digital multimeter that could be used by people with low or no vision. We found a pretty good low-cost Bluetooth-connected meter from General Tools, model TS-04 (credit to Pedro G.C. Oliveira for finding it). It connects to an app for iOS or Android that’s reasonably accessible with a screen reader, but I thought it’d be helpful if it were possible to build customized interfaces for it, to match the user’s abilities and preferences more closely. What follows is an explanation of the process. The final code to make it possible can be found on my GitHub account.

If you’re new to Bluetooth LE, check out Alasdair Allan, Don Coleman, Sandeep Mistry’s book Make: Bluetooth (available in the Maker Shed), or this introduction that we did a few years ago on gitHub. To figure out the protocol, I used Punchthrough Design’s LightBlue app on the MacOS (available in the MacOS app store) to connect to the meter, a lot of experimentation in JavaScript, and the Mac calculator, in engineering mode so I could look at the bits (press command-3 in the calculator to enter engineering mode).

Apple calculator in engineering mode (press command-3 to enter this mode). In this mode, you can view numeric results in decimal, hexadecimal, or octal modes, you can see the binary values of each number, and you can perform bitwise operations like AND and OR on numbers.

Apple calculator in engineering mode (press command-3 to enter this mode). In this mode, you can view numeric results in decimal, hexadecimal, or octal modes, you can see the binary values of each number, and you can perform bitwise operations like AND and OR on numbers.

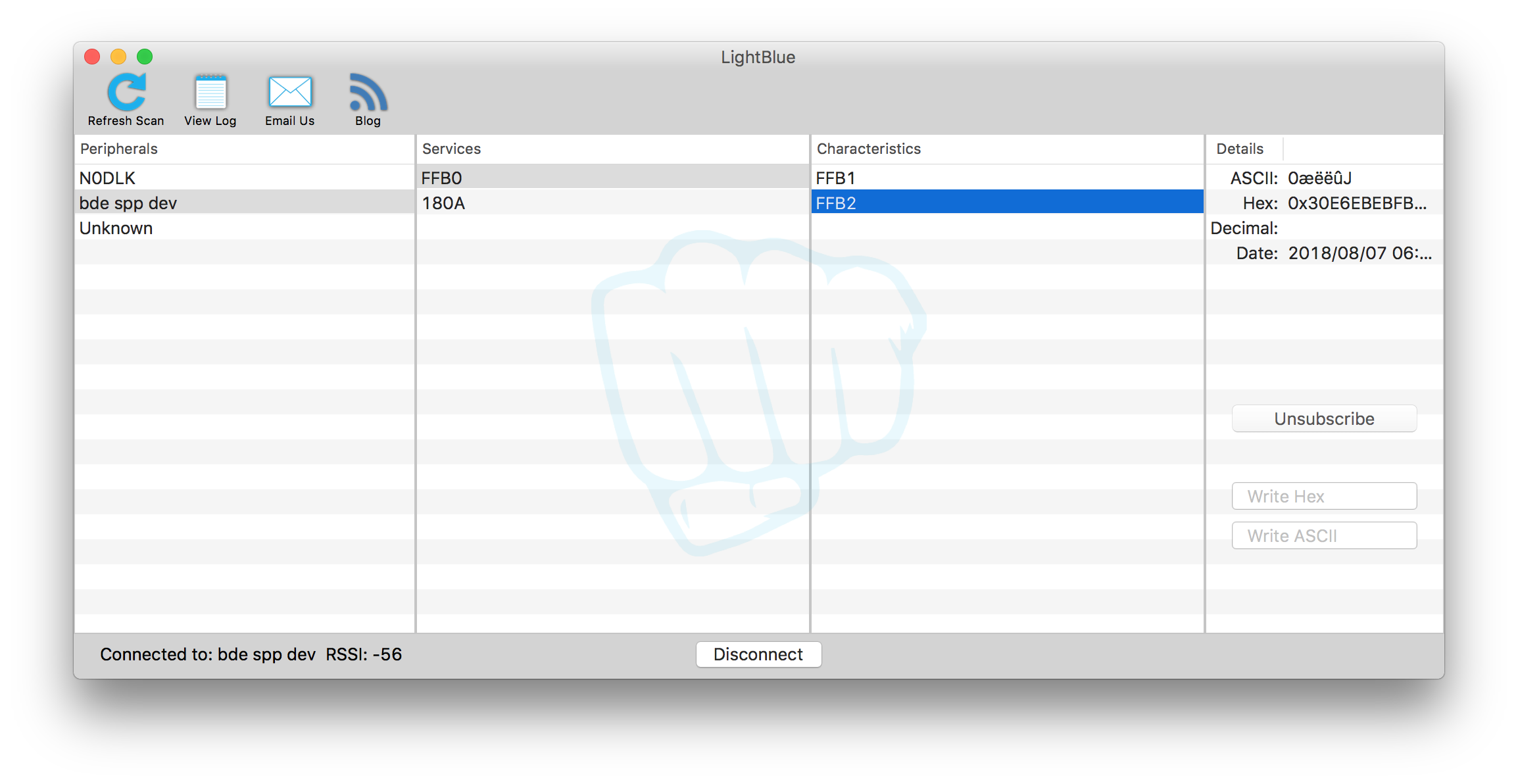

Punchthrough's LightBlue app is a good tool for browsing BLuetooth LE peripherals. You can view a device's services and characteristics, and read from and write to them.

Punchthrough’s LightBlue app is a good tool for browsing Bluetooth LE peripherals. You can view a device’s services and characteristics, and read from and write to them.

Connecting to the Meter from JavaScript

LightBlue is useful for learning the UUIDs of Bluetooth LE peripheral devices and their services and characteristics. Once I knew those, I could connect to it using a Bluetooth LE programming environment. I chose to use Web Bluetooth (details available here) to make it easy to build an interface in HTML that could be used in a browser. Yining Shi’s example for p5.js was useful (on gitHub), as was Uri Shaked’s post on Medium (at this link). My connection code is on my gitHub repository at this link.

It’s worth noting that web Bluetooth may not be the best solution to this problem. As of this writing, it only works in Chrome, and the device discovery chooser is not accessible to some screen readers, from what I can see. I don’t believe a solution is forthcoming to that problem until it’s available in other browsers. But hopefully it will change if web Bluetooth catches on in other contexts.

The meter’s primary service uses the UUID FFB0, and has two characteristics. The first, FFB1, continually sends the ASCII string SPP:sendData 08\s\n\ which is not so useful. The second, FFB2, sends a nine-byte string of binary data that appears to change as you change the meter’s settings. I converted it to a string of numbers it with the following JavaScript function:

function handleData(event) {
var buf =;
if (buf.byteLength >= 20 ) {
// reading characteristic FFB1:
var str = String.fromCharCode.apply(null, new Uint8Array(buf));
console.log('I got ' + str);
} else {
// reading characteristic FFB2:
console.log(new Uint8Array(buf));

The Data

To figure out how the meter worked, I looked at the display and went through all the settings to understand what each one looked like.

The display of the TS-04 meter, showing the various functions. Image from the user manual (click image for the full manual)

The display of the TS-04 meter, showing the various functions. Image from the user manual (click image for the full manual)

Next I made a JSON model of the meter’s relevant features like so:

var meter = {
value: '', // number value
negativePolarity: '', // DC negative polarity
units: '', // what you are measuring: V, A, ?, etc.
magnitude: '', // kilo-, milli-, mega-, micro- ,etc.
acDc: '', // AC or DC, for V and A readings
setting: null, // what setting (function) you're on
hold: null, // hold current reading onscreen
autoRange: null, // autoranging feature
ncv: false // non-contact AC voltage beep

That gave me a data structure I could fill in that could be used for any interface I want to build.

The first and last bytes of characteristic FFB20 don’t change; the first is always 48, the last is always 1. Here’s a typical string, showing what happens when the meter’s on the voltage setting, reading 000.0 mV DC:

[48, 226, 235, 235, 251, 11, 129, 66, 1]

The remaining seven bytes are 56 bits. The display has 53 discrete symbols on it: four seven-segment numerals, three decimal points, a negative sign, and 21 assorted other symbols. It seemed logical that the 56 bits would represent the 34 symbols on the meter, so I tried all the meter settings, examining the bits using the calculator to find out. Isolating the non-numeric functions was pretty straightforward. Here’s a breakdown of the symbols I worked out for the nine bytes:

Byte 0: unchanging, always 48

Byte 1:

  • bit 4: negative sign
  • bit 2: auto-ranging
  • bit 0-1: DC/AC
    • AC: 01
    • DC: 10

Byte 2:

  • bit 4: decimal point in second digit

Byte 3:

  • bit 4: decimal point in second digit

Byte 4:

  • bit 4: decimal point in second digit

Byte 5:

  • bit 7: diode
  • bit 6: k
  • bit 4: µ
  • bit 2: NCV beep signal (middle LCD of last digit)

Byte 6:

  • bit 7: hold symbol
  • bit 5: resistance symbol
  • bit 3: continuity
  • bit 2: M
  • bit 0: m

Byte 7:

  • bit 7: NCV symbol
  • bit 6: always on; could be Bluetooth or Auto-off
  • bits 4-5: Temperature:
    • 01: F
    • 10: C
  • bit 3: low battery
  • bits 0-1: Voltage, amperage
    • 01: A
    • 10: V

Byte 8: unchanging, always 1

With those values known, I could set the properties of my meter JSON object using some bit-masking to check to see which bits were set. For example, here’s the check for auto-ranging:

// byte 1 bit 2 is autoranging:
meter.autoRange = ((data[1] & 0b100) > 0);

The other bit checks are similar. The full program is in the ble-ts04.js file.

The Numerals

The numeric data was more of a mystery. The lower four bits of bytes 2 through 5 changed with the digits as follows:

  • 0 = 1011
  • 1 = 1010 same as 7
  • 2 = 1101
  • 3 = 1111 same as 8, 9
  • 4 = 1110
  • 5 = 0111 same as 6
  • 6 = 0111 same as 5
  • 7 = 1010 same as 1
  • 8 = 1111 same as 3, 9
  • 9 = 1111 same as 3, 8

As noted above, bit 4 of bytes 1 through 4 are all associated with a decimal point for one of the digits, or the negative sign. The upper three bits of bytes 1 through 4 appeared to change with the digits, but the pattern doesn’t make obvious sense. They’re not binary representations of the numbers 0 through 9. But if you lay them out on a seven-segment LCD pattern, they begin to make sense. Figuring this out took some drawing of numbers, and guesswork. The digits with a common pattern – for example, 3, 8, and 9 – all have segments in common. That led me to look at the three changing bits in the previous bytes. Sure enough, those bits changed predictably with the digits as well. Starting with byte 1, each digit is made up of the high three bits of one byte, and the lower four bits of the next byte. Going clockwise from the upper left, the segments’ bits are as follows, for digit n:

  • Left upper: byte n bit 0
  • Center: byte n bit 1
  • Left lower: byte n bit 2
  • Bottom: byte n bit 3
  • Decimal point: byte n bit 4
  • Right lower: byte n-1 bit 5
  • Right upper: byte n-1 bit 6
  • Top: byte n-1 bit 7

The diagram below shows you the layout of which bits control to which segments:

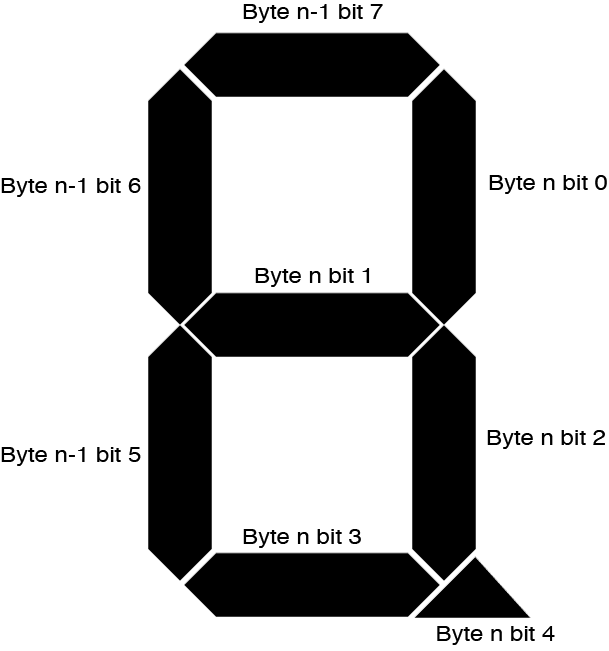

The segments of a seven-segment LCD shown, labeled with the bit that controls each segment.

The segments of a seven-segment LCD shown, labeled with the bit that controls each segment.

With this knowledge, I could make a case statement that would extract the correct digit from the binary values. Here it is:

// parse the value of a digit from the bits in bytes 1-4
function makeDigit(byteValue, prevValue) {
let digit = '';
// combine the upper three bits of the first byte
// with the lower four bits of the second byte.
// bit 4 is always the decimal point, so it's ignored here:
let numberValue = (byteValue & 0b1111) | (prevValue & 0b11100000);
switch (numberValue) {
case 0:
digit = ' ';
case 0b11101011:
digit = '0';
case 0b1010:
digit = '1';
case 0b10101101:
digit = '2';
case 0b10001111:
digit = '3';
case 0b01001110:
digit = '4';
case 0b011000111:
digit = '5';
case 0b11100111:
digit = '6';
case 0b10001010:
digit = '7';
case 0b11101111:
digit = '8';
case 0b11001111:
digit = '9';
case 0b01100001:
digit = 'L';
case 0b11100101:
digit = 'E';
case 0b11100100:
digit = 'F';
return digit;

There are still some missing pieces. I didn’t try to find the battery, Bluetooth, or Auto-off icon bits, because they’re not useful in general operation. I couldn’t get data on the continuity beep, other than to look for 000.0 when in continuity mode. I didn’t try to remotely modify the display. This last may be possible since the characteristics are theoretically writeable without response.

The HTML Interface

I built a minimal HTML interface for the meter, just enough to show the pieces needed. A more fully-realized interface for different abilities would be a good idea. Mine is below. The elements should be self-evident. View the HTML here, or see the live preview here.

Finally, I wrote a pair of functions in a separate JavaScript document, display.js, to populate the page. I deliberately avoided any JS frameworks so you can pick your own when you make something with this. These two functions are called from the ble-ts04.js script when the meter gets new data (in handleData()) and when the meter disconnects (in disconnect()), respectively:

function fillDisplay(thisMeter) {
// Is the meter connected or not?
if (thisMeter.status !== null) {
document.getElementById('status').value = thisMeter.status;
} else {
document.getElementById('status').value = 'Connected';
// assemble the meter reading's value, units, and order of magnitude:
document.getElementById('value').value = thisMeter.negativePolarity
+ thisMeter.value;
document.getElementById('units').value = thisMeter.magnitude
+ thisMeter.units;
// IF measuring voltage or amperage, indicate AC/DC:
if (thisMeter.units === 'volts' || thisMeter.units === 'amps') {
document.getElementById('acDc').value = thisMeter.acDc;
} else {
document.getElementById('acDc').value = '';
// if measuring non-contact voltage, indicate that, and clear units:
if (thisMeter.ncv) {
document.getElementById('value').value = thisMeter.ncv;
document.getElementById('units').value = '';
// is auto-ranging on?
if (thisMeter.autoRange) {
document.getElementById('autoRange').value = 'AutoRange';
} else {
document.getElementById('autoRange').value = '';
// is the hold button on?
if (thisMeter.hold) {
document.getElementById('hold').value = 'hold';
} else {
document.getElementById('hold').value = '';
// what setting are you on?
document.getElementById('setting').value = thisMeter.setting;

// clear all the display elements except the connection status:
function clearDisplay(meter) {
document.getElementById('connected').value = 'Disconnected';
document.getElementById('value').value = '';
document.getElementById('units').value = '';
document.getElementById('acDc').value = '';
document.getElementById('autoRange').value = '';
document.getElementById('hold').value = '';
document.getElementById('setting').value = '';

The full project can be found on my gitHub repository. Enjoy, I hope it’s useful to someone.

Thanks to John Schimmel, Pedro G. C. Oliveira, Claire Kearney-Volpe, and Josh Miele and the Blind Arduino Blog for inspiration.

Posted in javascript | Tagged | Comments Off on HTML Interface For a Digital Multimeter

Programming a Christmas Tree

As we planned for Christmas this year, my partner suggested that maybe we should replace the lights for the tree. “While we’re at it,” she asked, “is there anything out there that’s more controllable than just the ones that twinkle on and off?”

“Well,” I said, “there are NeoPixels…”

We decided that it would be great to have a tree where the lights looked and acted like candles, flickering gently in a soft, warm glow, and fading from a bright orange down to a low reddish glow by the end of the evening. We also wanted to realize the cheesy quote from It’s A Wonderful Life that “every time a bell rings, an angel gets its wings.”

Here’s a timelapse of the tree in action:

When you ring the bell, this happens:

The process of making it gave a chance to work with:

You can find the code and circuit in the gitHub repository for this project.
Continue reading

Posted in arduino/wiring, AVR, circuits, code | Tagged , , , | Comments Off on Programming a Christmas Tree

Node.js on the Arduino Yún

Recently, Federico Fissore added node.js to the package repository for the Arduino Yún. Here’s how you get node to communicate with the Arduino processor on the Yún via the Bridge library.

To do this, you’ll need an Arduino Yún, a microSD card, a microUSB cable and a wifi connection. You should be familiar with the basics of the Arduino Yún and node.js in order to get the most out of this post.

All of the code for this post can be found on my GitHub repository.

Continue reading

Posted in arduino/wiring, code, javascript, node.js | Tagged , , , | 1 Comment

What is “Real-Time”, Anyway?

Recently, a colleague of mine was working on a project with an Arduino Yún that involved reading a lot of sensor data using the Yún’s Arduino processor and writing it to the microSD card via the board’s Linux processor to be served to other devices via HTTP. She found that it took anywhere from 20 milliseconds  to several seconds to get the data from the sensors written to the SD card. “Why is it not real-time?” she asked me.

Welcome to the world of embedded operating systems. They are not realtime. “Realtime” can mean many things. In automotive systems, for example, your car’s braking system had better react in “realtime” or you’re dead. That might mean only a couple of milliseconds. When measuring high-speed rotation, it might even mean microseconds.

My colleague was measuring her function’s response time in tens to hundreds of milliseconds. That function read one controller’s analog input pin, sent the result via asynchronous serial to another controller, and then stored the result on an SD card. I haven’t measured it, but I’d wager you’ll see the same response times on a BeagleBone or Raspberry Pi, or any embedded Linux board.  Here’s why:

All computers run programs. In a microcontroller like the Arduino, there’s only one program running. That program is made up of instructions stored in memory, in a particular order. The computer moves through those instructions one at a time. Sometimes it jumps around in the

At the electrical level, all computers are made up of transistors, so in computing, the fastest version of “realtime” means “how fast can you read and act on a changing voltage on a transistor?” Some of the input/output pins of a microcontroller are usually hardware interrupt pins, meaning that they can be programmed such that if there’s a change on that pin, the program running on the controller is immediately interrupted and a special function is run. This function, called an interrupt service routine or ISR, is typically very short. Normally an ISR simply stores the result of the interrupt in a variable. Then the processor returns to the main program.

Operating systems, both on small boards like this and on servers and personal computers, do not guarantee a minimum response time to physical I/O. They are written to optimize processor sharing between programs, so the scheduler, a core part of the operating system, doles out processor time to each program. Even before the programs you run get time, there are OS tasks that take time.  Disk writing is one of the most time-intensive tasks. Perhaps the only longer task is a network transaction, because the data is going through many computers, each with its own operating system.

In systems that have to have real-time response, you typically use one of two options:

1) no operating system. Your processor runs one program only. Like Arduino

2) a “realtime operating system” or RTOS. RTOSes are stripped-down operating systems that leave many core functions out. As of yet, all RTOSes are custom packages, not very user friendly, though there has been some work lately on realtime linux. I haven’t seen one running on any of the hobbyist boards, but i wouldn’t be surprised if we don’t see one in the next year or so.

When we designed the Yun, we decided we’d give users the benefits of both real-time and an operating system. What you do on the 32U4 (the Arduino processor) is real-time because there is no operating system. What you do on the linino side is not, because it’s running linux, an operating system. The typical approach to a networked project (whether a Yun or other system) is to do all the real-time operations on a non-OS micro controller, then send the results to an operating system computer in non-real-time, after the action has happened.

Here’s a use case that illustrates the use of real-time and an operating system together:

Let’s say you’re using a rotary encoder to measure the speed of a wheel on a remote control vehicle. You want to display the speed on a dashboard screen that’s networked to the vehicle over Wifi.

Rotary encoders measure rotation by counting pulses generated by a rotating shaft. When the rotation is fast, the pulses happen VERY fast, and you need real-time to catch them. On a micro controller, this is typically sensed using hardware interrupts. These are sub-circuits of the micro controller that can interrupt the program flow when a change happens on a given I/O pin. They force the program to jump to a function to handle the interrupt. You usually want that function to be very short — typically all it does it to increment or decrement a variable counting the changes. The Arduino Uno has two hardware interrupts, and Paul Stoffregen’s encoder library allows you to use them for reading encoders.

The way you’d build this app is to have the rotary encoder attached to the hardware interrupts of a micro controller. This controller is your physical I/O controller. You’d write a program for the micro controller that calculates the speed based on the pulse rate and sends that serially to another controller connected to a display. One function counts the pulses. That’d be done by the function called by the interrupt (these are called Interrupt service routines, or ISRs). Another function calculates a running speed based on the changing count. A third function might control the movement of the vehicle’s steering based on the value. A fourth function sends the calculated value over a serial connection to the display computer.

The serial connection of the physical controller be connected to a networked modem like the Wifi shield or a Bluetooth radio, but that modem is just another single-function controller. That transmission takes time, and you don’t want to take processor time away from counting the pulses, so your physical I/O controller doesn’t handle this transmission, it only counts pulses and sends the value on. The radio controller handles the network connection. It transmits the data on to a display computer or a server. That server is typically running an operating system, and not working in real time, but that’s okay, because humans aren’t going to react in more than a half-second or so most of the time.   What you see onscreen is typically a report of the sensor readings, but it’s an average or aggregated reading, not the raw, realtime reading.  The delay depends on the transmission time of the data. Perhaps you have a virtual steering wheel onscreen that then directs the card, but this is not real-time either. The user gets to steer the car, but what she’s really doing is affecting the gross movement of the steering, not the fine control over the axle. She’s changing the overall balance, but the physical I/o controller is the only part acting in real-time to the sensors.

It is possible for a controller that’s running an operating system to have hardware interrupts, and for it to have interrupt service routines. But those are typically part of the operating system kernel, not part of the user programs. You have to write custom kernel routines and restart the OS in order to use them. So unless you’re a kernel programmer, you typically won’t use these on BeagleBone, Raspberry Pi, or Arduino Yun. This is why there are many projects that combine the Pi or the Bone with an Arduino or other non-OS controller to do real-time sensing, and it’s why the Yun has a separate processor for that as well.

A typical personal computer is made up of several controllers, in fact. There’s normally a CPU, a network controller, a controller inside any disk drive (if it’s a drive with a motor), a graphics processor, a hardware bus controller, and more. These are usually tied together with synchronous serial communication like SPI or I2C or some other means of communication. The dedicated controllers handle their subsystems in realtime, and report back to the CPU, which reports in user time (not real time).

Posted in arduino/wiring, misc | Comments Off on What is “Real-Time”, Anyway?

BlinkyTape using NeoPixel Library

Blinkinlabs is shipping their product now after their successful KickStarter campaign, and I got mine in the mail a couple days ago. I had a few minutes and thought I’d get a basic example up and running. The Blinkinlabs documentation was confusing to me, however. The “Simplest BlinkyTape Sketch” wasn’t. The code was more complex than I had hoped, and I couldn’t find documentation of the API, but I noticed there were some examples that used the Adafruit NeoPixel library. Those examples didn’t run for me, but I figured if there were NeoPixel examples in the BlinkyTape repository, it should be possible to run the thing with that library.

A quick look at the schematics for BlinkyTape confirmed that it was indeed running the Atmega32U4, same as the Arduino Leonardo (their documentation’s good on setting the tape up as a Leonardo). Furthermore, the data in of the lights is connected to pin 13.  From there, it was simply a matter of modifying the Adafruit NeoPixels to work on pin 13.

Like the BlinkyTape examples, most of the Adafruit NeoPixel library examples were all about color scrolling. I dislike color scrolling. Call me old and cranky, but I remember a time when lighting designers made color choices and stood by them; when the designers of lighting tools gave us controls that let us choose those colors easily. I’m hoping that someday we’ll look back on this era  see color scrolling as a lighting design choice the same way as we see the mullet in hairstyle choice: a bad idea we had to go through to get to something more pleasant. Now you kids, get outta my yard! </cranky old man rant>

My sketch works like this: you send a serial string to the Arduino starting with a capital C, followed by the pixel number, the red level (0-255), the green level (0-255) and the blue level (0-255). The NeoPixel library then sets the color of the pixel you chose. That’s it.

Now that I know this thing’s so simple to use, I can see a lot of projects with it. Love the built-in processor too, makes it even more convenient. Makes me want to order a whole lot more NeoPixels from Adafruit too.

Here’s the code. You can also get it from gitHub.

Can not find code at url :

Posted in arduino/wiring, code, electronics | Comments Off on BlinkyTape using NeoPixel Library

Sending Data Serially To Arduino

One question I get all the time is this:

I know how to send data from Arduino to (Processing, OpenFrameworks, etc). But how to I send data from (Processing, OpenFrameworks, etc) to Arduino?

Many people don’t seem to know that Arduino has built-in functions for parsing streams of data. Back with version 1.0.1 Michael Margolis’ excellent TextFinder library was merged into the core Stream library. So you can send an ASCII string like this:

123, 456, 789

And Arduino can read it and convert the numeric characters back into numeric values.

For example, let’s say you want to send a string to set the values of two LEDs that you’re going to fade using the analogWrite() command. Your data might look like this:

P1, 255\n
P2, 127\n

(the \n represents a newline character, ASCII 10)

Using the parsing functions, you can look for the initial P character, then parse the numeric string that follows it until a non-numeric character (like the comma) comes along. Then you can do another parse until the next non-numeric character (like the newline at the end of the line) comes along. It’s as simple as this:

if (Serial.find("P")) {
    // read and parse characters before the comma:
    int ledNumber = Serial.parseInt();
    // read and parse characters after the comma:
    int brightness = Serial.parseInt();

Here’s a full example.

So the next time you’re trying to figure out how to read data in Arduino, first decide what your data looks like, then get to know the Stream functions. In addition to find() and parseInt(), there’s also readBytes(), readBytesUntil(), parseInt(), parsefloat(), and a few other goodies.

The really nice thing about these functions is that they work on any library based on Stream. So, for example, you can also use them on the Ethernet and WiFi and GSM Client and Server classes.  This makes parsing network data much simpler.


Posted in arduino/wiring, code | Comments Off on Sending Data Serially To Arduino

Arduino Ethernet (and WiFi) and Your Favorite Band

Let’s say you’re a fan of one of the bands in The Deli magazine’s new bands poll. There are so many good bands there, like Teen Girl Scientist Monthly, and others. And let’s say you were looking for a project for an Arduino WiFi shield or Ethernet shield.  Why not make your Arduino vote for your favorite band? It’s not hard to do.

First you need to know how to scrape the webpage for the URL of the vote. If you view source on the page, you’ll see it nice and clear:


So the whole URL is

Great! Now, take the WiFi WebClient example, or the Ethernet WebClient example, and change a few lines:

Change  this:

client.println("GET /search?q=arduino HTTP/1.1");

to this:

client.println("GET /poll/poll.php?category=6&answer=6560&adZone= HTTP/1.1");

And change this:

char server[] = "";

to this:

char server[] = "";

And give it a go! Remember, no cheating. You can only vote once per IP address.  But if you know a friend with several WiFi shields or Ethernet shields, well, that’s only one IP address per shield, right?


(Good luck, Matt and the band!)

Posted in arduino/wiring | Comments Off on Arduino Ethernet (and WiFi) and Your Favorite Band
